Do Leds Have Polarity

LEDs have polarity, which means they will only work if they are inserted into a circuit the correct way. The longer leg of the LED is the positive (+) lead, and the shorter leg is the negative (-) lead. If you try to insert an LED into a circuit backwards, it won’t light up.

Most LEDs have polarity, which means they will only light up if installed correctly. The positive side of the LED is called the anode and is marked with a longer lead, while the negative side is called the cathode and is marked with a shorter lead. If you reverse the leads, the LED will not light up.

Some LEDs are designed without polarity, so they can be installed either way.

5 simple ways to determine LED polarity

What Happens If Led Polarity is Reversed?

When LED polarity is reversed, the LED will not illuminate. This is because LEDs require a certain amount of voltage and current in order to function properly. If the polarity is reversed, the LED will not be able to draw enough current to turn on and will remain dark.

How Do You Determine Led Polarity?

When determining LED polarity, the first thing you need to do is identify the anode and cathode of the LED. The anode is the longer lead, and the cathode is the shorter lead. Once you have identified the leads, you need to determine which way around they need to be connected in order for the LED to work.

This can be done by looking at the datasheet for your particular LED. Some LEDs will have a line or dot on one side of the body that indicates which way around it needs to be connected. If there is no indication on the datasheet or LED itself, then you can try connecting it one way and seeing if it lights up.

If it doesn’t light up, then switch around the leads and try again. Whichever way makes the LED light up is the correct configuration.

Why Do Leds Have Polarity?

LEDs, or light-emitting diodes, are semiconductor devices that convert electricity into visible light. They have two leads, or electrodes, called the anode and cathode. The anode is the positive lead and the cathode is the negative lead.

The anode is connected to a power supply and the cathode is connected to ground. When voltage is applied to the LED, electrons flow from the anode to the cathode and create light. The polarity of an LED refers to which lead is the anode and which lead is the cathode.

Most LEDs have what’s called “common-cathode” polarity, meaning that the negative lead (cathode) is shared by all of the LEDs in a circuit. Some LEDs have “common-anode” polarity, meaning that all of the LEDs in a circuit share a positive lead (anode). LEDs must be connected in correct polarity in order for them to work properly.

If you connect an LED backwards (i.e., with reversed polarity), it will not light up. Connecting an LED backwards can also damage it permanently.

What Side of an Led is Positive And Negative?

LEDs, or light emitting diodes, are devices that convert electrical energy into visible light. They are made up of two parts: the anode and the cathode. The anode is the positive side of the LED and the cathode is the negative side.

When electricity is applied to the LED, it causes electrons to flow from the anode to the cathode. This flow of electrons creates a photon, which is then emitted as light from the LED.

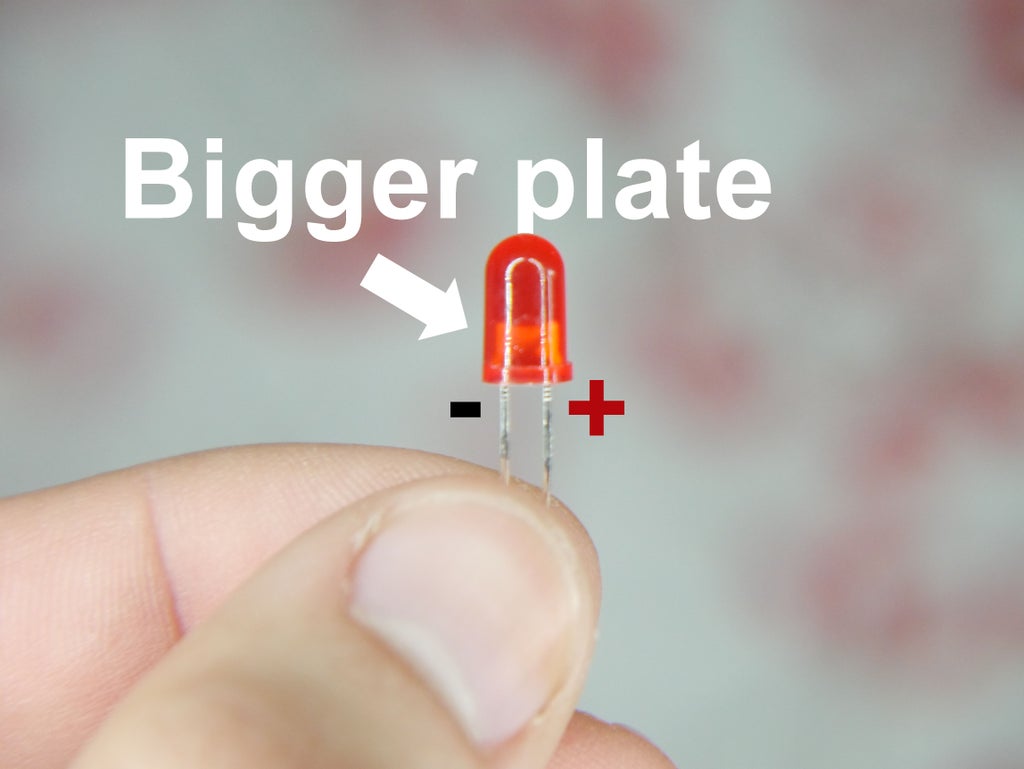

Do Leds Have Polarity

Credit: www.instructables.com

Can a Single Chip Led Produce White Light

A single chip LED is a semiconductor diode that emits light when an electric current is applied to it. The light emitted by a single chip LED can be of any color, depending on the composition of the semiconductor material used to create the LED. While most LEDs emit light in the visible spectrum, some LEDs also emit ultraviolet (UV) or infrared (IR) radiation.

The output of a single chip LED is usually much brighter than that of a traditional incandescent bulb, making them ideal for use in flashlights, headlamps, and other applications where bright light is needed. However, because they produce such a concentrated beam of light, single chip LEDs are not well suited for general lighting purposes. While traditional incandescent bulbs produce white light by combining all the colors of the visible spectrum together, single chip LEDs can also produce white light by using a phosphor coating on the surface of the LED.

This coating absorbs some of the incoming photons and re-emits them as photons with longer wavelengths. When these longer wavelength photons mix with the shorter wavelength photons emitted by the LED, they combine to create the illusion of white light.

Will Reverse Polarity Damage Led

If you reverse the polarity of an LED, it will not damage the LED. However, if you reverse the polarity of a diode, it will damage the diode.

How to Identify Positive And Negative Terminal of Led

When you are looking at an LED, it can be difficult to determine which terminal is positive and which is negative. However, there are a few things that you can look for that will help you to identify the terminals. First, take a look at the shape of the LED.

The positive terminal is typically on the longer side of the LED, while the negative terminal is on the shorter side. Another way to tell the difference between the terminals is by looking at the color of the leads. The positive lead is typically red or orange, while the negative lead is usually black or green.

Finally, you can also check for a flat spot on one of the leads- this indicates that it is the cathode (negative) lead.

Conclusion

Yes, LEDs have polarity, which means that they will only work if installed correctly. An LED has two terminals, the anode and the cathode. The anode is the positive terminal and the cathode is the negative terminal.

If you reverse the polarity of an LED, it will not work.
